Brief introduction

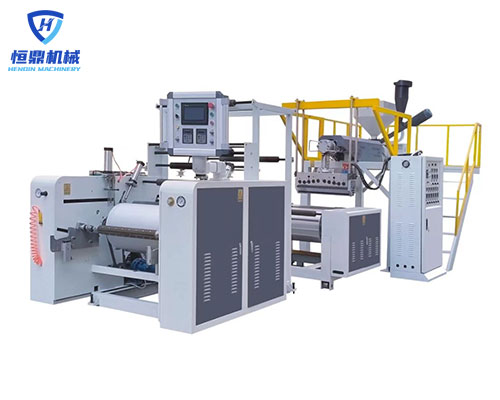

The machine group is a cast stretch film machine group with high-plasticizing, easy operating, long-life ,energy saving and it's modified and designed on the years' experience on the cast equipment manufacturing and the production experience from the customers, combined with the advanced technology from oversea. The machine group is mainly for the production of LLDPE film, LDPE film, PE film, and CPE film etc. It adopts advanced intelligent industrial controlling system, with automatic hidden cutting saw, automatic cutting and roll change, auto paper core loading and unloading system(option upon request),which ensures the easy and safe operation, a tighter and more even roll winding. All the designs ensure the film quality, enhance the production efficiency, lower down production cost and create more value. The installation of swing system on the subsidiary machine can enhance the evenness and appearance of the film rolls which make the products more competitive.
Main parameter
| Project/specification |
1000mm single layer |
500mm single layer |
| Screw diameter |
65 |
55mm |
| Length-diameter ratio |
30：1 |
30:1 |
| Main motor |
30kw |
15kw |
| The die head width |
1250mm |
750mm |
| Finished product width |
1000mm |
500mm |
| Finished product thickness |
0.015-0.04mm |
0.015-0.04mm |
| Membrane layer structure |
A |
A |
| The maximum output |
100kg/h |
50kg/h |
| Mechanical speed |
10-100m/min |
10-100m/min |
| The total power |
50kw |
35kw |
| Overall Dimensions (L*W*H) |
6m*2.0 m*2.5m |
6m*1.5m*2.5m |
| Weight(T) |
4.0T |
3.0T |
