General Description

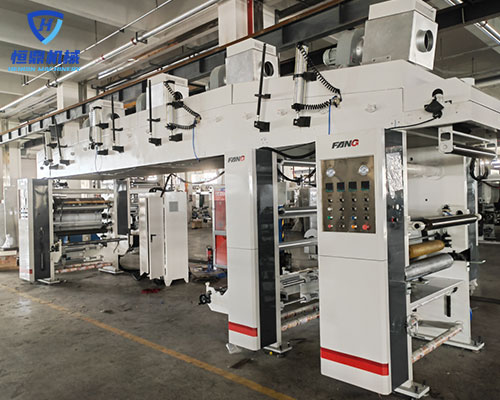

This machine suitable for the double layers or multi layers lamination of such roll film materials as BOPP, PET, Nylon, CPP, CPE, aluminum foil. The film laminated by this machine can be used for package materials with high requirements on strength, fresh-keep and cooking bag.
Main Technical data
| Model |
HDLM-B1050/1250/1350 (3 Vector Motor) |
| Effective Laminating Width |
1000mm/1200/1300 |
| Max. Width of Base Material |
1050mm/1250/1350 |
| Max. Machine Speed |
220m/min |
| Lamination Speeds |
200m/min |
| Max. Diameter of primary unwinding |
Ф600mm |
| Max. Diameter of secondary unwinding |
Ф600mm |
| Max. Diameter of rewinding |
Ф600mm |
| Inside Diameter of Roll Core of Base Material |
Ф76mm |
| Layer Quantity of Laminating |
Two Layer (for one pass) |
| Control Range of Tension |
3~30 kg (Preset) |
| Precise of Tension Control |
±0.5KG |
| Heating Power of Oven |
63Kw |
| Total Power for Whole Machine |
110KW(1050mm model) |
| Weight of Machine |
10000Kg |
| Overall Dimension |
L10600×W3000×H3500mm |
