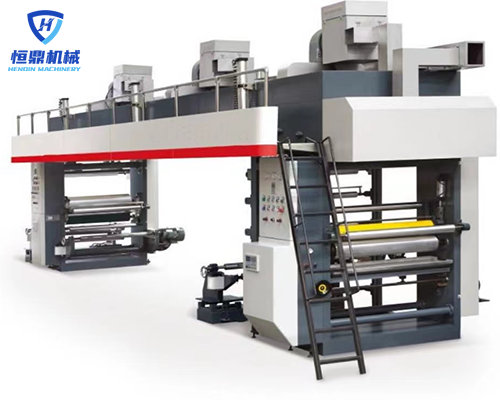

This solvent-based machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP,PET,NYLON,CPP,CPE,aluminum foil and paper,etc.
Main parameter
| Model |
HDLM-B1050/1250/1350 |
| Material |
Plastic film / Paper / Aluminum foil |
| Laminating Width |
1000mm/1200mm/1300mm |
| Laminating stratification |
2layer（one time） |
| Max.machine speed |
180m/min |
| Laminating speed |
10-160m/min |
| Roll material Diameter |
ф600mm |
| Range of tension control |
4-25kg |
| Total power |
105kw |
| Machine weight |
11000kg(1350mm model) |
| Machine dimension |
L11500×W3000×H4200（mm) |
