Categories: PLASTIC PELLETIZING MACHINE

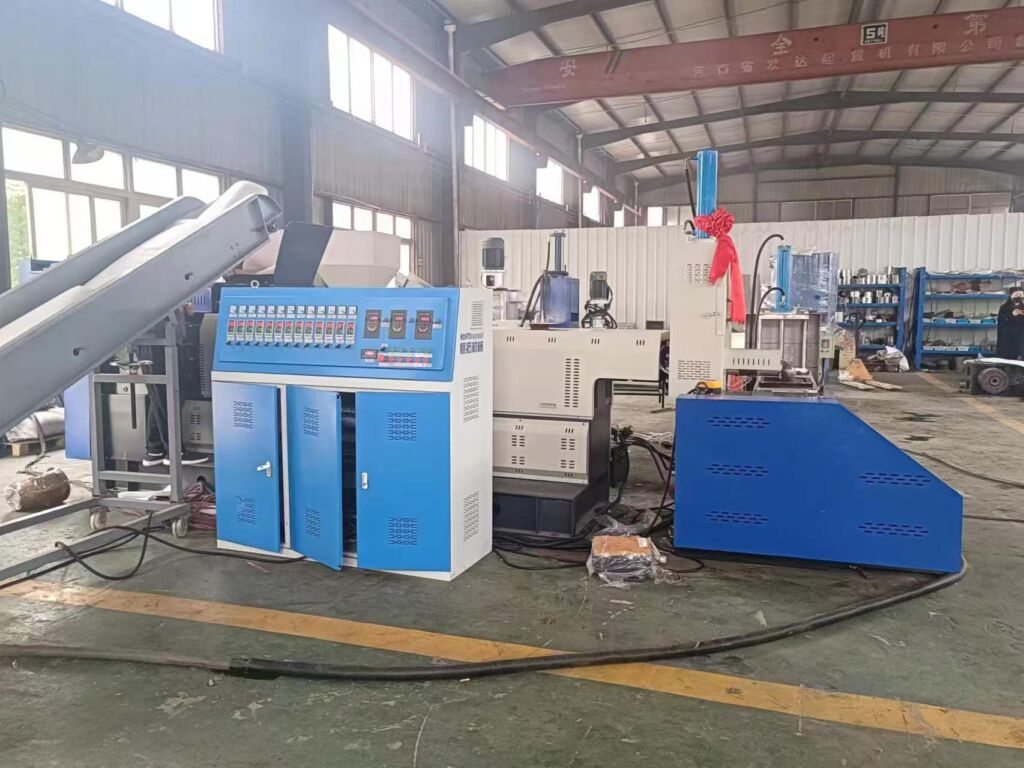

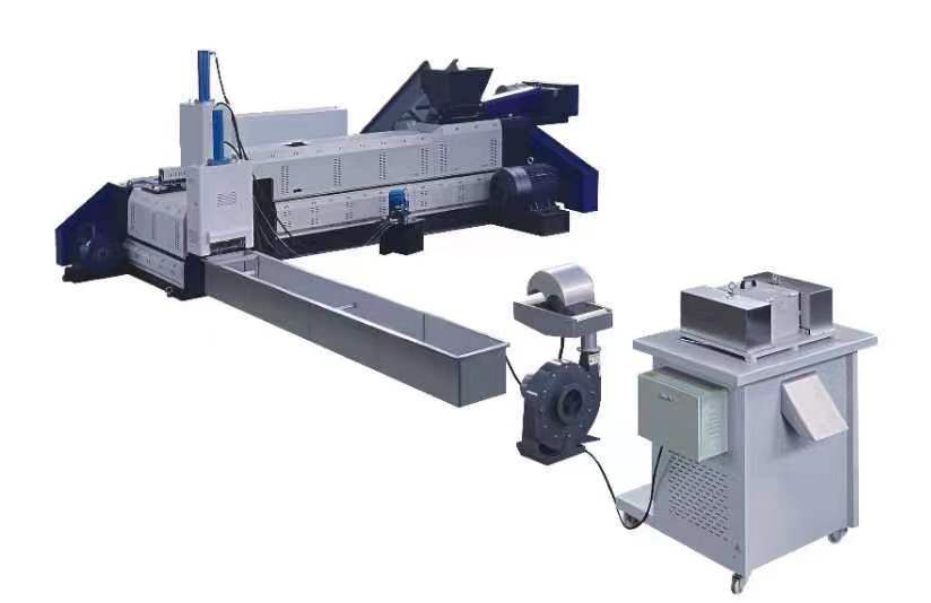

SJ-C150-140 PP/PE High Speed Double Stage Water Cooling Pelletizing Machine with 200-350kg/hour
1.Feature:
1)This machine suitable for PE, PP waste film,Broken plastic bottle,plastic bucket,recycle,and then granulator into granules;
2)Machine with safety shield, more safety operate and temperature more stable;

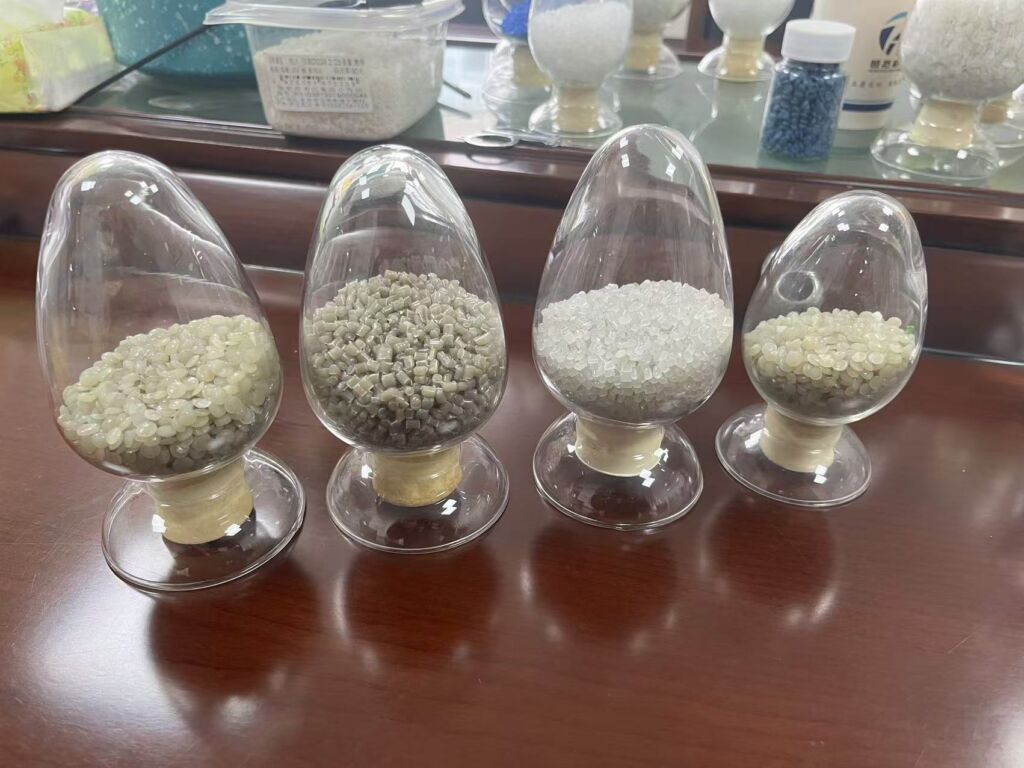

3)Finished granule can mix with new material use, it can save factory cost.
Main Technical Variables:
| Model | SJ-C150/140 Fully Two Stage Water Cooling Granulator |
| Type Diameter of Screw Stem | Φ150mm with SACM-645/38 CRMOALA material |
| Main extruder | |
| Screw&barrel | 150mm |
| Major Diameter Ratio of Screw Stem | 1:22 |
| Main motor | 250 hardness gear reduction box |
| Main Motor Power | 75kw with inverter control |
| Type Diameter of Screw Stem | Φ150mm with SACM-645/38 CRMOALA material polished with Niterided Treatment hardness of heat treatment: screw HV≥740, barrel HV≥900,depth:0.6-07mm |
| Heating zone | 6zoncs on screw&barrel with ceramic heating and 4zone on die head with stainless steel heating |
| With hydraulic pressure non-stop screen changer with 250*250 | |
| Second extruder | |
| Screw&barrel | 140mm |
| Major Diameter Ratio of Screw Stem | L/D 10:1 |
| Main motor | 200 hardness gear reduction box |
| Main Motor Power | 18.5kw with inverter control |
| Type Diameter of Screw Stem | Φ140mm with SACM-645/38 CRMOALA material polished with Niterided Treatment hardness of heat treatment: screw HV≥740, barrel HV≥900,depth:0.6-07mm |
| Heating zone | 2zoncs on screw&barrel and 1zone on die head with stainless steel heating |
| With hydraulic pressure screen changer with 250 | |
| With 3kw motor cutter with 18pcs rotating knives&1pcs fixed knife | |
| With stainless steel tank for granules (1ton capacity) | |
| With automatic conveyor with auto-brake function (belt size:600*4500mm W*L) | |
| Output | 200-350kg/hr |
| Weight | 6500kg |
| Dimension | 5.5×7.8×2.5m |
| Power supply: | 380V 50HZ |
