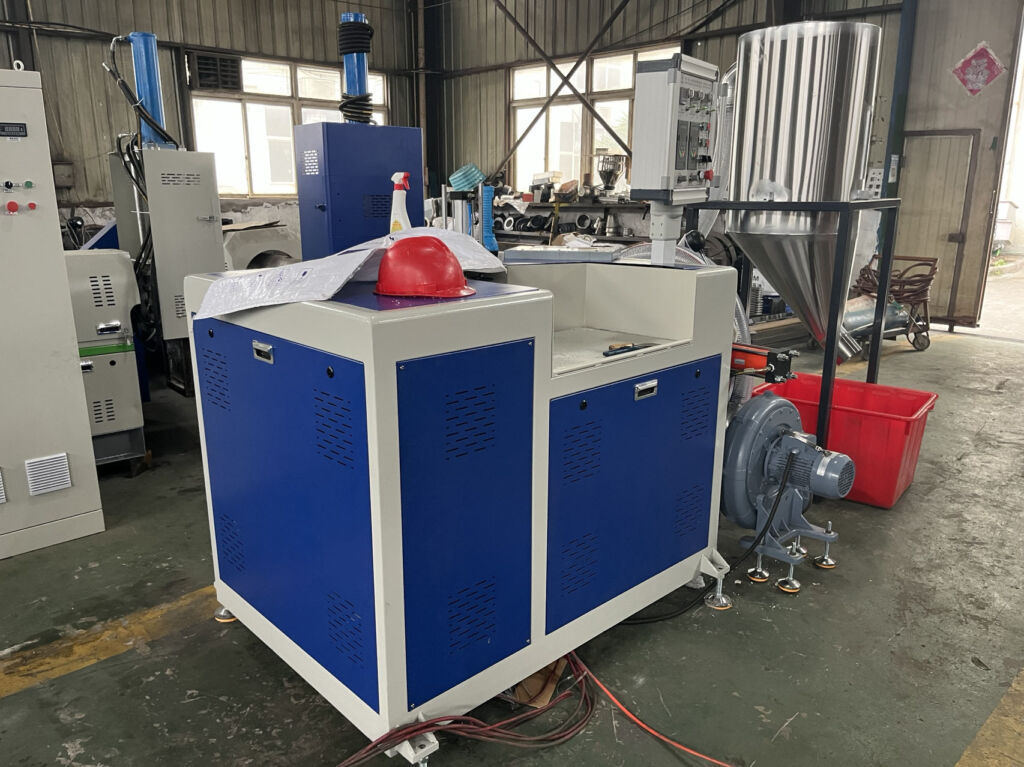

Mini Type Air Cooling Die Cutting Plastic Pelletizing Machine
Description of characteristics:
1.1. This machine is suitable for HDPE, LLDPE, LDPE, PAL waste films and scraps.
1.2. It adopts non-net filter and rotary blade dicing.
1.3. Production process: low temperature type. (The screw does not need to be heated, the first area of the pelletizing head is heated by 2.5kw)
Main Technical Variables:
| Model | SJW-90 |
| Output | 60-80KG/H |
| Power supply | 3Phase/380V/60HZ (If the buyer’s power source different, should declare in advance.) |
| Hopper size | 300mm*300mm |
| Gearbox | 146# Jiangsu changzhou |
| Screw&barrel | Extruder screw diameter: 90mm aspect ratio: 1::9 Material: 38CR Origin: Zhoushan |
| Driving system | Main motor: 18.5KW (main extruder) 4-stage inverter motor Frequency conversion speed control, frequency conversion power 18.5Kw |
| Die head | Granulator power: 0.75kw, frequency conversion speed control: inverter 0.75kw |
| Controlling system | Electrical accessories brand: Schneider Contactor:Schneider |
| Heating system | die head heating zone:1 zone heating power:2.5kw |
| Cooling system | blower cooling:1.5kw |
| Material feeding | PVC air tube 4.5meters long。 |
