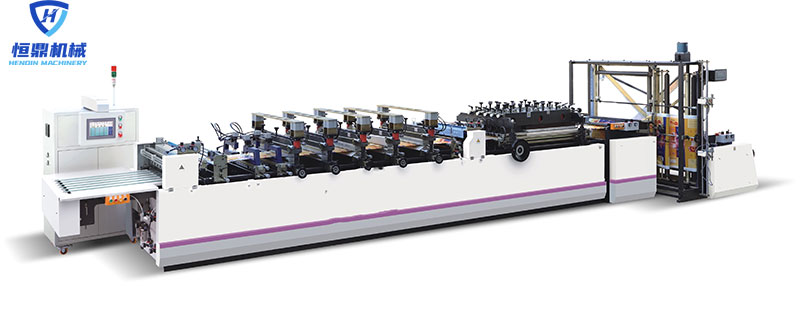

HD-ZUA400/500/600 Three-side sealing pouch making machine

PERFORMANCE AND CHARACTERISTICS

1. Wholemachine controlled bey central PLC control system with man-machine. More stable performance, easy for operation and maintenance.Chinese and English interface language can be shifted easily.
2. Constant auto-tension contral for unwinding,LPC edge alignment,AC inverter constant speed auto material feeding.
3. Imported double servo-motor material dragging control system
4. Main motor for up-down sealing and pressing equipped with imertor.
5. PID for sealng bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.
6.
Equipped with Pneumatic multi-functic)nautopunchingdevion,trimcuttingand auto rewinding and static eliminator
7. Temperature adjustment range:0~300℃
8. Counter:quantity,batch accumulation,pre-set available.
9. Operation Method:by length fbxation control and/or by photocell tracking contral.
10. Punching device:working rhythwm canpre-setas continaovis,litarval or stop, punching time can be pre-set.
11. Material Skip Feeding:one to six times available.
12. Batch Conveying Function available,the quantity of batch can be preset.

Machine specification
