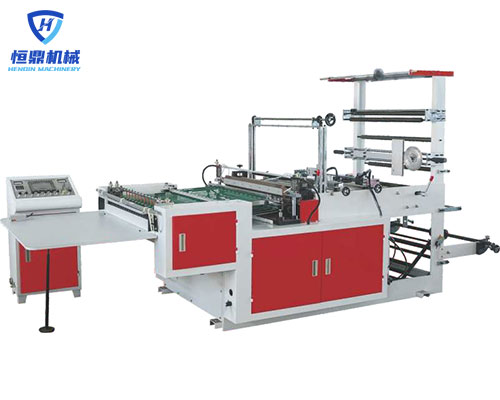

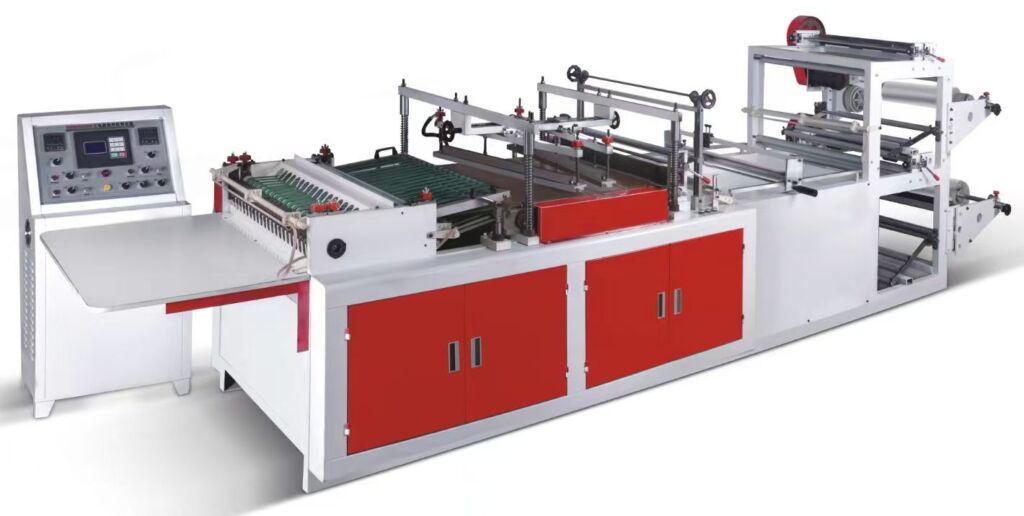

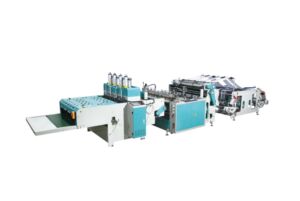

CPP/OPP Side Sealing Bag Making Machine
Suitable materials:
BOPP, PP, PE, POF, CPP etc.Which can be used to heat and cut.
Produce the products:

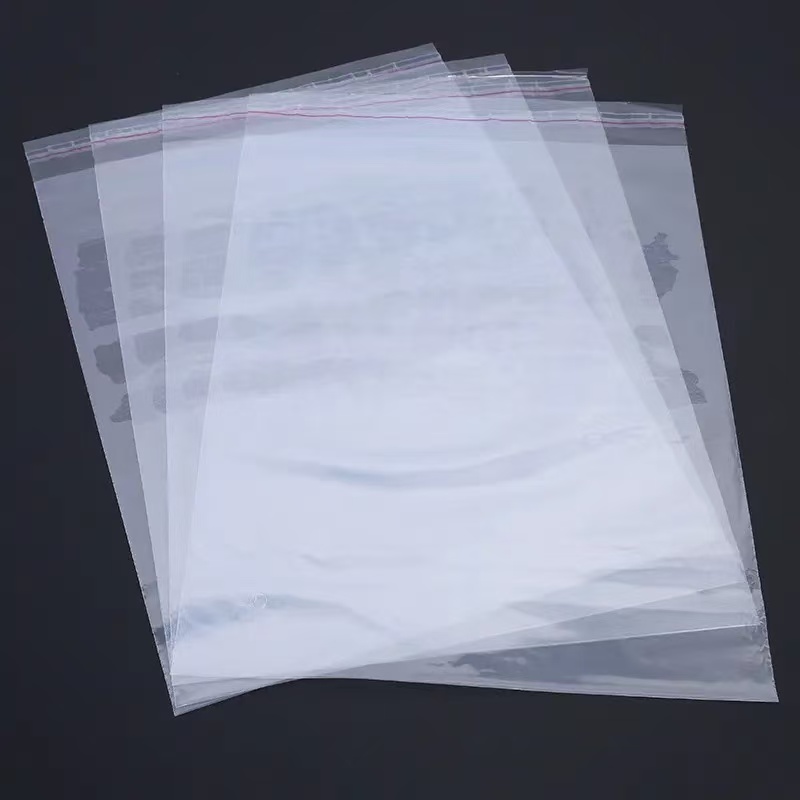

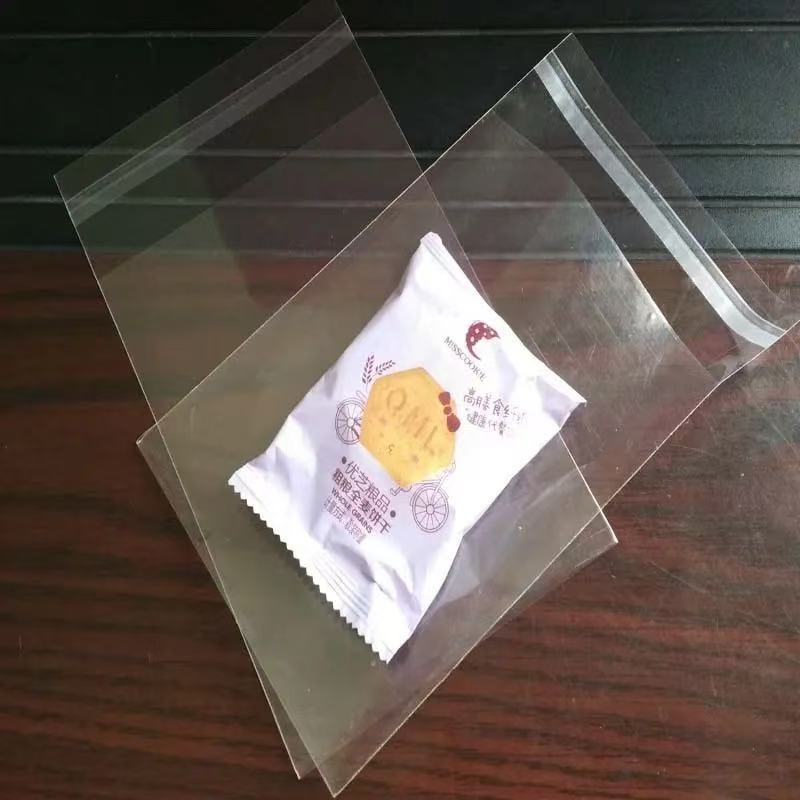

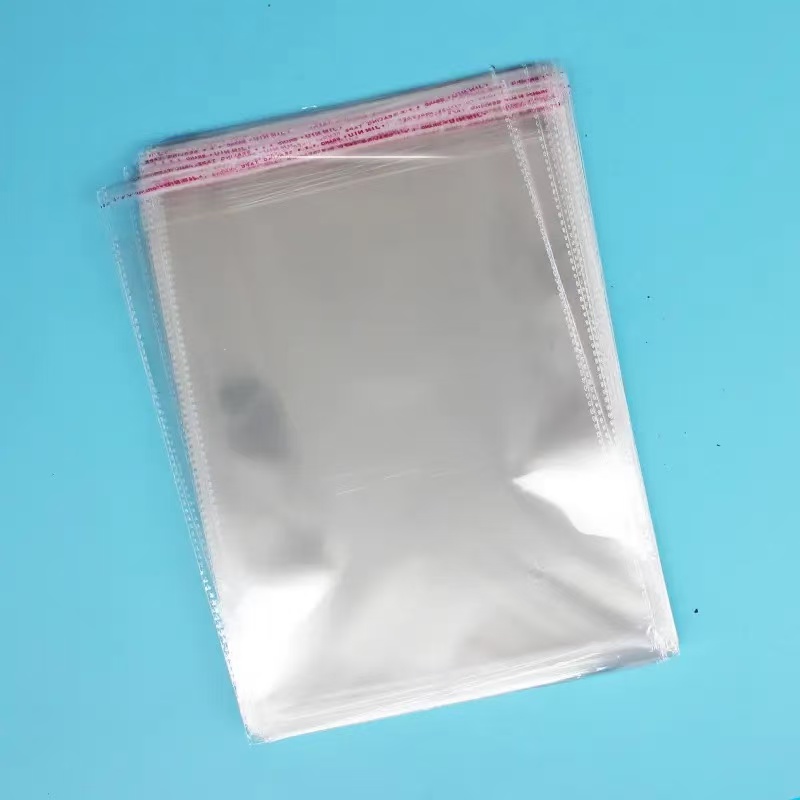

Clothing bag, socks bag, towel bag bread bag, ornaments bag, underwear bag, stationery bag, electric components bag, bamboo products and woodwork bag, etc.
Functions:
This machine has the functions:Servo motor controlled by computer for feeding, infinite speed variation for machine running, photoelectric tracking for length, automatic gluing, automatic punching, and thermal edge sealing.
Main Technical Parameter
| Model |
HD-RQL600 |
HD-RQL700 |
HD-RQL800 |
HD-RQL1000 |
| Max.sealing&cutting width |
550mm |
650mm |
750mm |
950mm |
| Sealing&cutting length |
700mm |
700mm |
700mm |
700mm |
| Sealing&cutting thickness |
0.01-0.05mm |
0.01-0.05mm |
0.01-0.05mm |
0.01-0.05mm |
| Bag-making Speed |
40-250pcs/min |
40-250pcs/min |
40-250pcs/min |
40-250pcs/min |
| Length Error |
±0.5mm |
±0.5mm |
±0.5mm |
±0.5mm |
| Power Of Main Motor |
1.1kw 6grade |
1.1kw 6grade |
1.1kw 6grade |
1.1kw 6grade |
| Heating power |
1.5kw |
1.5kw |
1.5kw |
2kw |
| Total power |
3.5kw |
3.5kw |
3.5kw |
4kw |
| Machine weight |
800kg |
850kg |
900kg |
1000kg |
| Overall Dimension(LxWxH) |
3200x1200x1500mm |
3200x1300x1500mm |
3200x1400x1500mm |
3200x1600x1500mm |
