Packing material information
|
| Packing material:Coffee bean&powder |
Packing weight：250 500 1000gram |
Packing size：L≤360mm
W 100-250mm |
Equipment solution analysis
|
| Advantages of fully automated packaging:
l Highly automated procedures, no manual operation required.
l High work efficiency and improve enterprise production efficiency.
l The production process of the whole process is stable and the consistency of products is improved.
l Save the production cost of the factory, and to a certain extent, the number of production employees can be saved.
l Integrate the production process and arrange various stations on the assembly line to meet the production needs.
l Relieve the pressure of enterprise employment and solve the problem of difficult recruitment of enterprises. |
Supporting analysis
|
 |
 |
 |
 |
| Customized cat litter automatic packaging machine |
Customized enlarged bucket 10 head electronic scale |
Customized enlarged automatic feeding machine |
Enlarged reinforced electronic scale working platform |

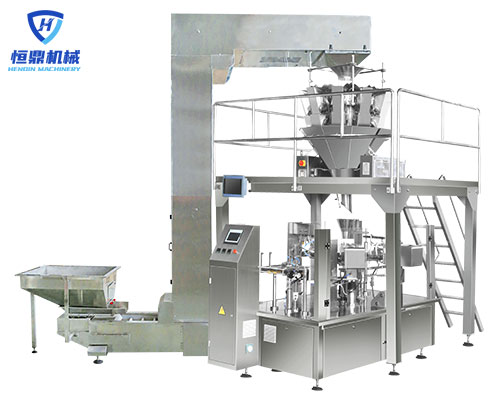

| 8-station bag-feeding packaging machine,Using Siemens system, after in-depth
R&D optimization, better performance,Stable, with extremely low failure rate control |
It has the function of high-speed asynchronous discharging, which can effectively prevent the material from blocking; and the machine has a self-checking function, which can detect the abnormality of each node in real time. |
The machine is forged from low alloy steel,And after carburizing and quenching, it has
Very high tensile strength and wear resistance performance. |
It is used to support the combination scale, which is convenient for employees to carry out the daily maintenance of the machine; and is equipped with a safety fence. |
| Equipment advantages:
l This set of solutions is automatic packaging for the whole line. The main features are stable performance and extremely low failure rate;
l There are three sections;
l One is system control, which uses Siemens devices. The system is the latest version in 2021. After 14 years of accumulated experience and technology, it is constantly being developed and optimized. The chip uses Siemens;
l The second is the design of the electrical system, using the most advanced Schneider devices in France, inverters, servo motors and drivers, etc., can give full play to the maximum advantages and performance of the device;
l The third is the pneumatic control system plate, which uses the most advanced AirTAC brand components in the world for pneumatic control. The purpose of this design is to enhance the stability and practicability of pneumatic control, and each link is equipped with a regulating valve for control. Adjusting the amount of air supply can ensure that each station receives a certain amount of air supply, and will not lead to insufficient air in a certain station and affect the use of equipment; |
Workflow
automatic feeding, automatic weighing, automatic bag taking, automatic coding, automatic filling and automatic sealing.
Detection system
- The feeder and combination scale, including the host, are controlled by linkage. For example, when the material in the hopper of the combination scale is lower than the set value, the
The signal feeds the feeder, if it is higher than the set value, the feeder stops feeding;
- When the bag packaging machine is not complete in taking the bag or opening the bag, the coding machine will stop coding at this station, and the combination scale will stop down.
materials, the sealing of the eighth station will also stop working, which will not cause any loss and waste of material bags;
Features of the main machine
8 working positions of mechanical swing can automatically adjust the width of the bag at the same time, suitable for bags of different widths.
The bag can be adjusted with one button.
Protection device
equipped with overload protection and safety device, if the air pressure is abnormal or the heating tube fails during the machine operation
It will automatically alarm when it happens.
Working speed
within the specified range, the speed device of frequency conversion can be adjusted at will;
Safety performance
When the machine door is opened, it will automatically stop to prevent the operator from being accidentally injured by the machine.
